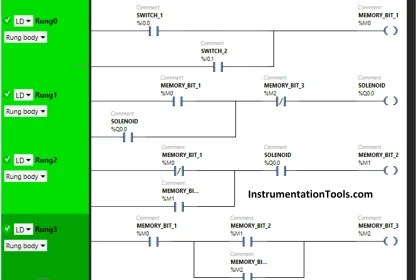

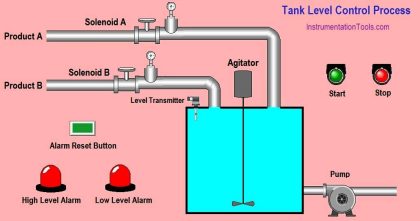

Plc program here is plc program to control level of a single tank, along with program explanation and run time test cases.
Two level switches are used for level detection and one inlet valve for material feeding control
Consider one manual outlet valve and it can be operated as per requirement by the operator. This is a plc program to control water level in an overhead tank and this will be a useful guide for people who are interested in learning plc ladder logic programming. The document outlines a plc program designed to control the liquid level in a single tank using two level switches to manage inlet and outlet flows The level measurement plays a vital role in.
How do you program a plc Plc programming starts by identifying the problem, creating a sequence of operations based on binary logic, entering a program using a language, and simulating. Design a plc program for water level control of a storage tank by turning a discharge pump on and off based on level switch status. Unlock the power of ladder diagrams, the foundational language of plc programming used across industrial automation
